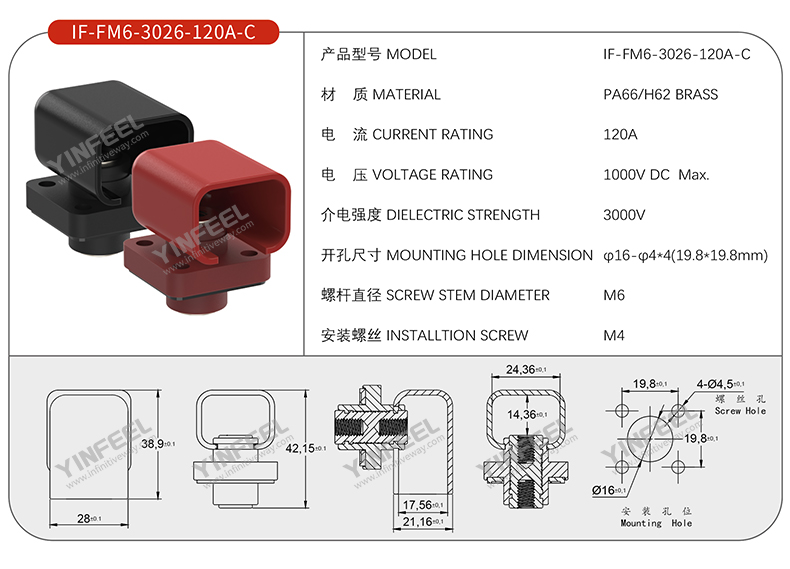

Product Model | IF-FM6-3026-120A-C |
Dielectric Streangth | ≥3000VAC/min |
Insulation Resistance | 1000MΩ |
Contact Resistance | 0.2mΩ Max |
Insulating Material | PA66 Anti-Flaming Glass Fiber Reinforced |
Metal Material | H62 Brass/Nickel Barrel Plating |
Current & Voltage | 0~1000V DC Max. 120A |
Screw Torque | ≤15nm |
Level of Protection | IP67 When fastened Sealing Gasket against Panel Portion |
Temperature Rating | -40℃~+125℃ |
Flammability | UL94V-0 (Sealing Gasket not included) |
Environmental Level | RoHS Compliant |
