IF-FM6-BSM6-200A-C
www.infinitiveway.com

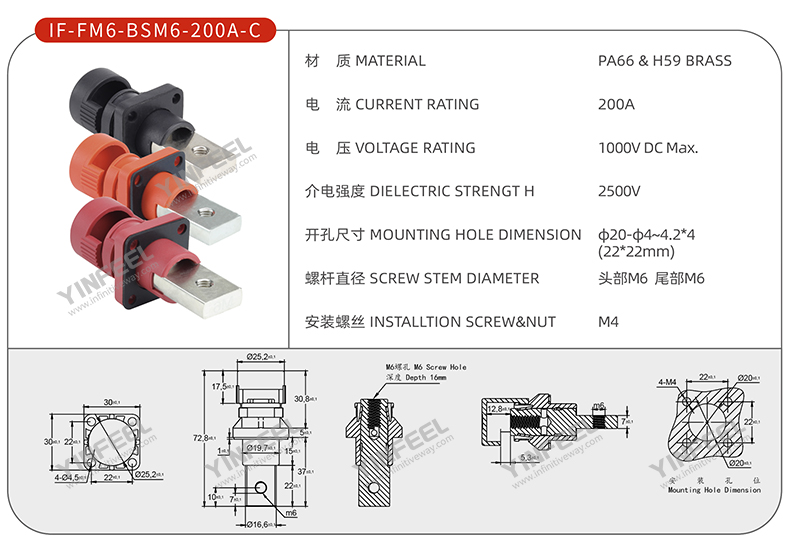

PRODUCT PARAMETERS:
Product Model
IF-FM6-BSM6-200A-C
Dielectric Streangth
≥2500VAC/min
Insulating Material
PA66 Flam Retardant Glass Fiber Reinforced
Chloroperene Rubber(Sealing Gasket)
Metal Material
H59 Brass Nickel Plated
Current & Voltage
200A 1000VDC Max.
Contact Resistance
0.05MΩ Max.
Insulation Resistance
1000MΩ
Flame Retardant Grade
UL94-V0
Working Temperature
-40~105℃
