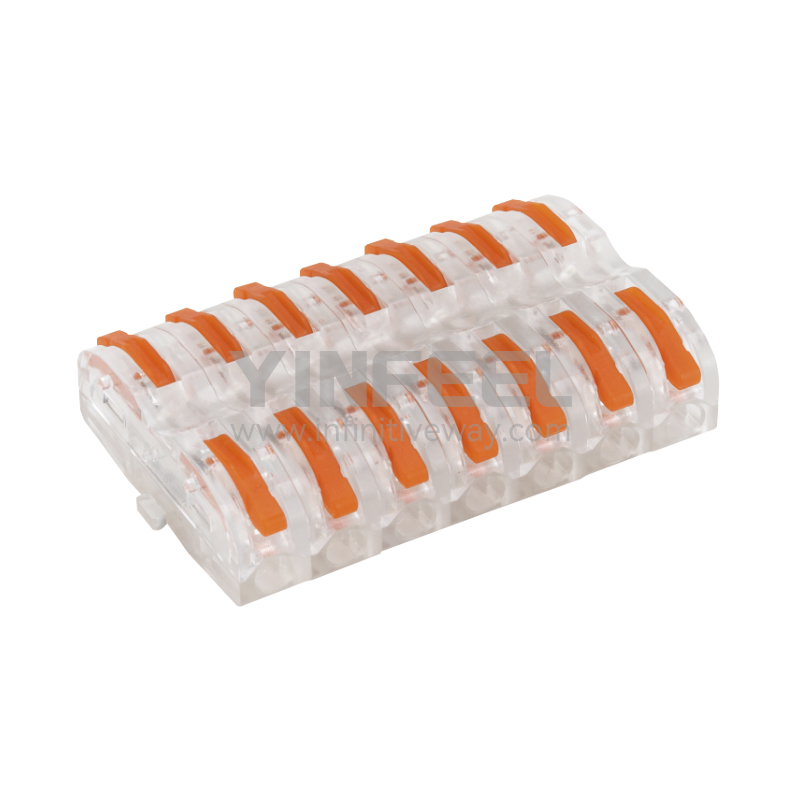

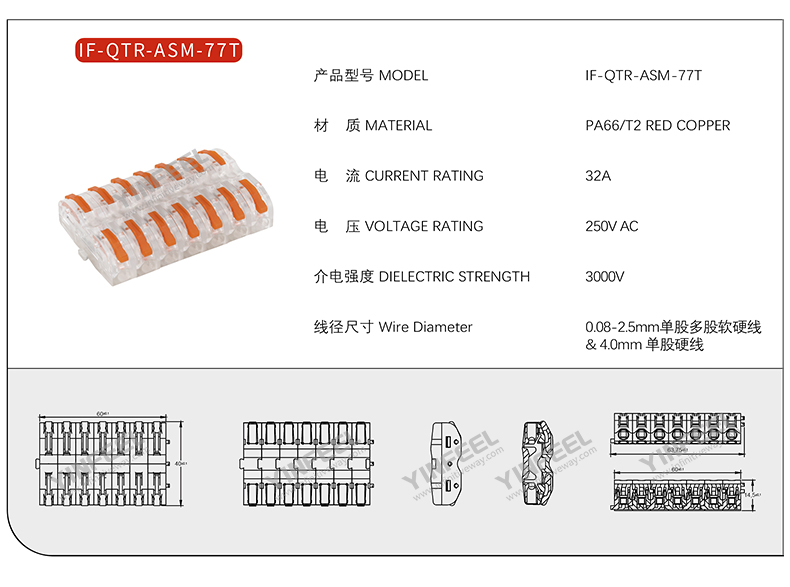

| Product Model | IF-QTR-ASM-77T |
|
| Electrical Specification | Dielectric Streangth | ≥4000VAC/min |
| Current & Voltage | 0~400V 32A |
| Compatible Cable Size | 0.08-2.5mm Single-Core & Multi-Core，flexible wire & Hard wire
4mm Single-Core hard wire |
| Mechanical Capacity | Environment Temperature | -30~+85℃ |
| Wire Stripping Length | 9mm |
| Product Material | Metal Material | Conductive Portion -- T2 Red Copper Tin Plated
Clips -- 301 Stainless Steel |
| Insulating Material | PA66 Anti Flaming Glass Fiber Enhanced |
