Insert and Extract type Terminal IF-ADS-50A Gray

Insert and Extract type Terminal IF-ADS-50A Gray
www.infinitiveway.com

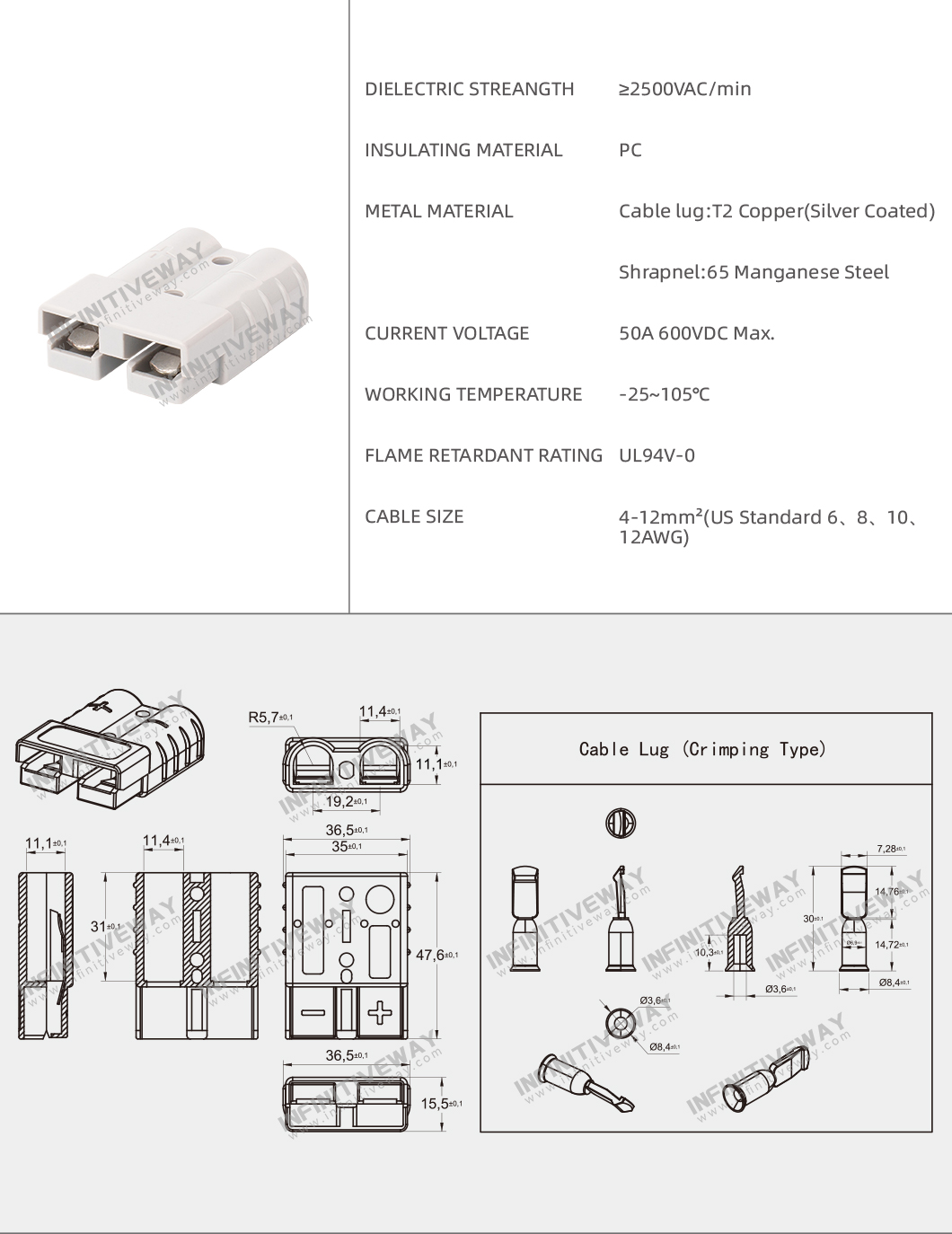

PRODUCT PARAMETERS:

Product   ModelIF-ADS-50A
Dielectric   Streangth≥2500VAC/min
Insulating   MaterialPC
Metal   MaterialCable lug: T2 Copper(Silver   Coated)
    Shrapnel : 65 Manganese Steel
Current   & Voltage50A 600VDC Max.
Working   Temperature-25~105℃
Flame   Retardant RatingUL94V-0
Cable   Size4-12mm² (US Standard   6、8、10、12AWG)
