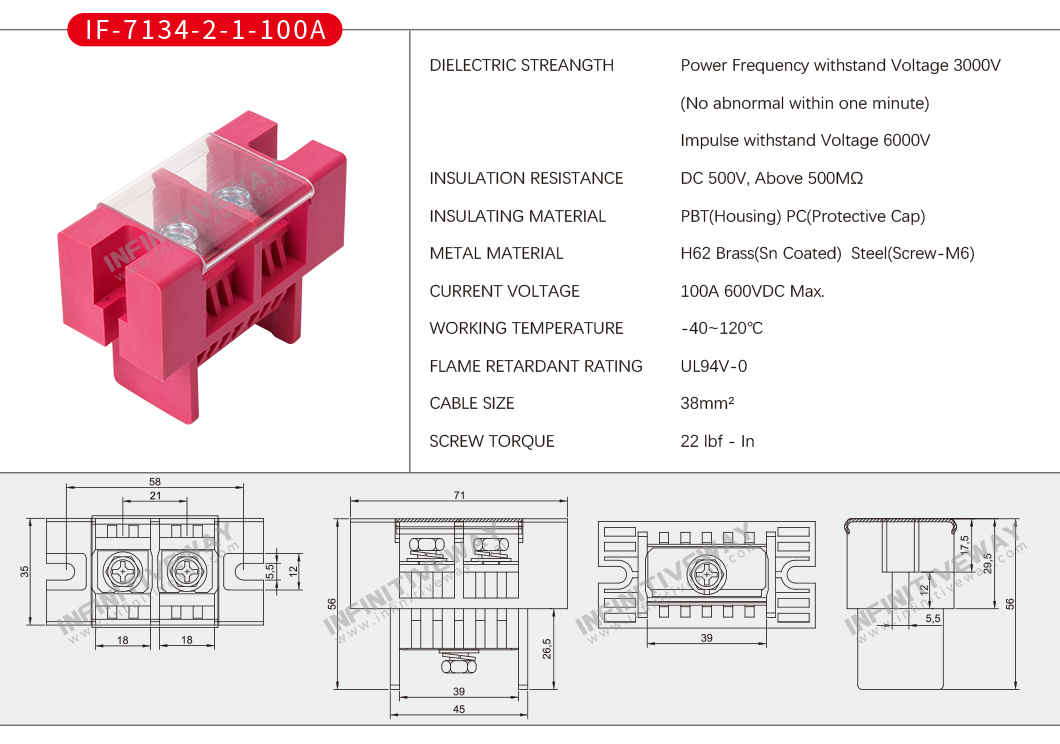

Bar type Terminal Block IF-7134-2-1-100A RED
Product Details
Product Model | IF-7134-2-1-100A |
Dielectric Streangth | Power Frequency withstand Voltage 3000V (No abnormal within one minute) Impulse withstand Voltage 6000V |
Insulation Resistance | DC 500V, Above 500MΩ |
Insulating Material | PBT(Housing) PC(Protective Cap) |
Metal Material | H62 Brass(Sn Coated) Steel (M6 Screw) |
Current Voltage | 100A 600VDC Max. |
Working Temperature | -40~120℃ |
Flame Retardant Rating | UL94V-0 |
Cable Size | 38mm² |
Screw Torque | 22 lbf - In |
