TERMINAL BLOCK

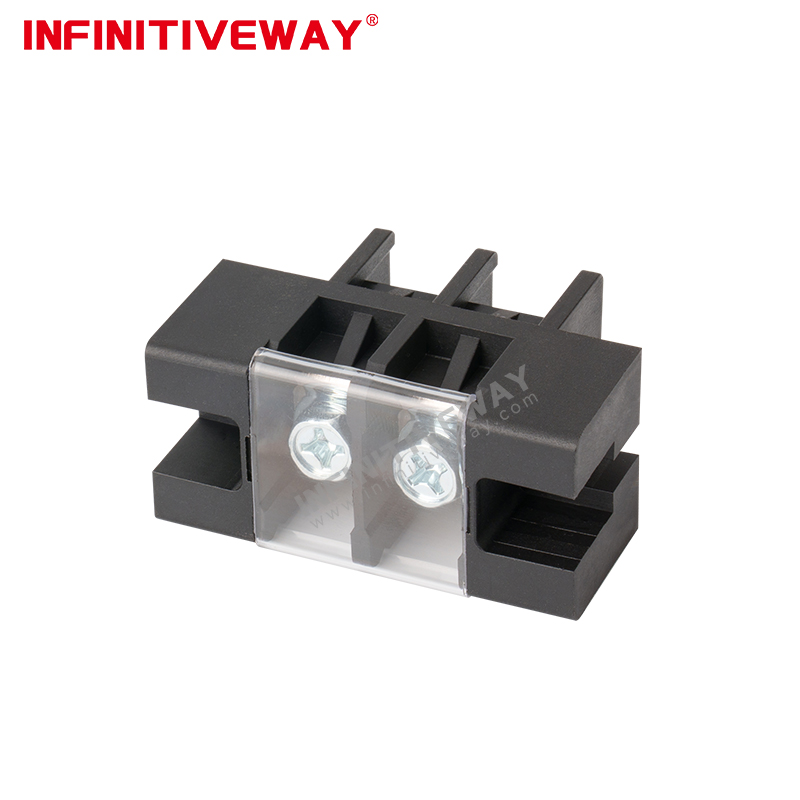

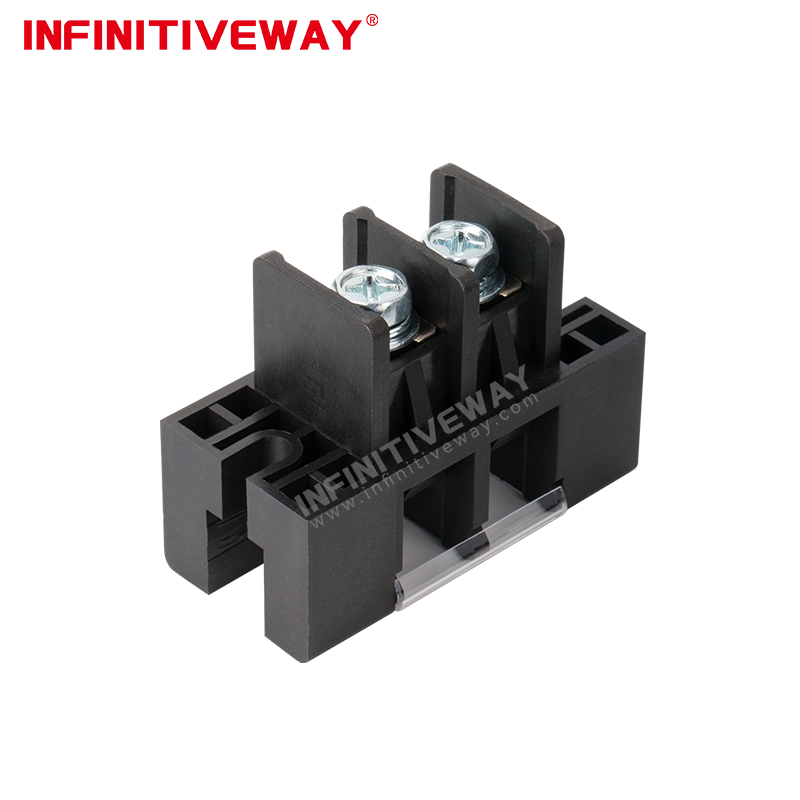

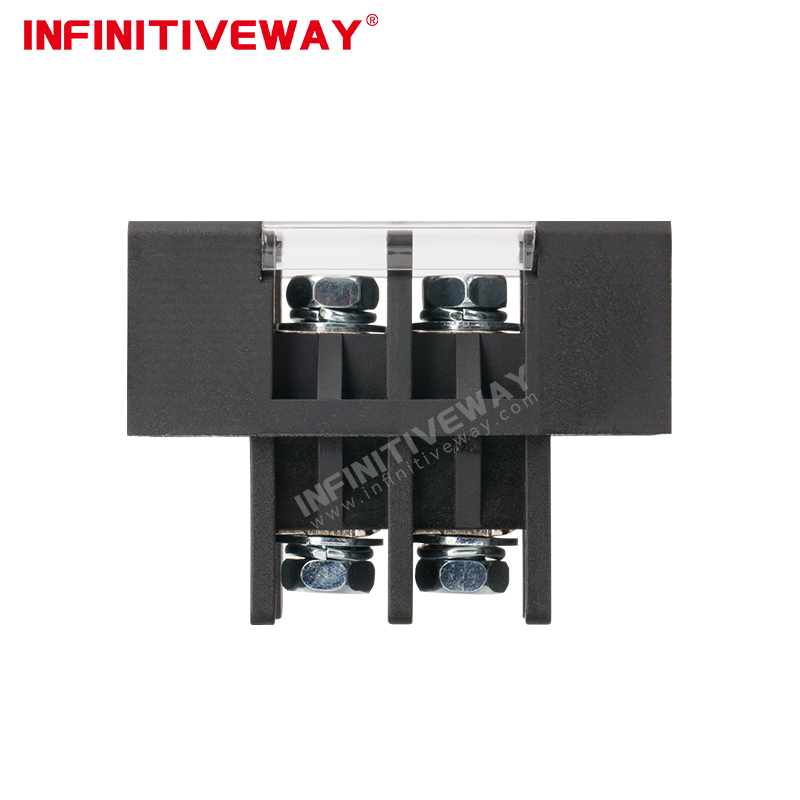

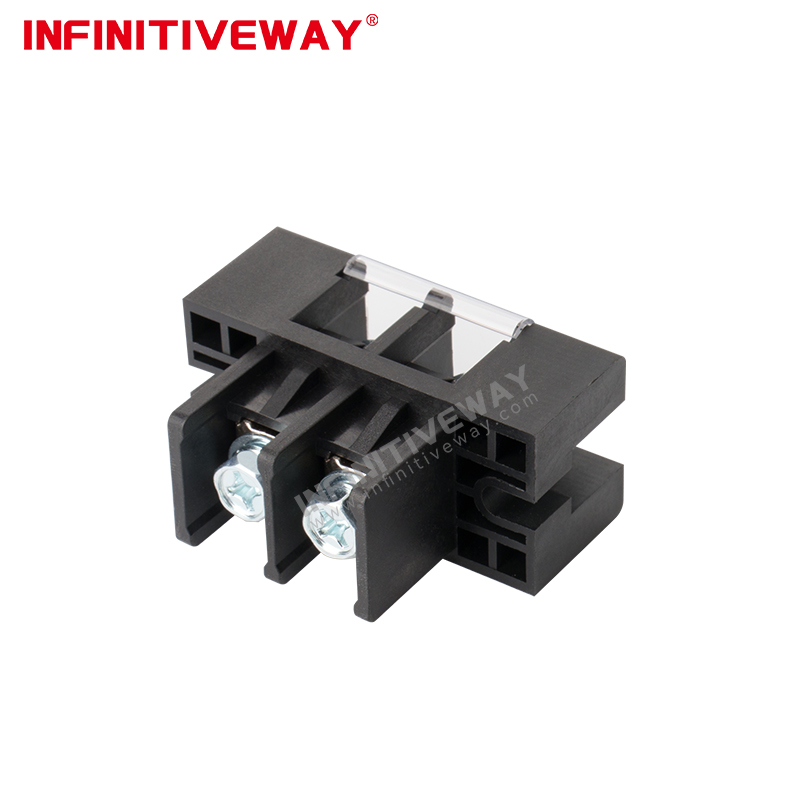

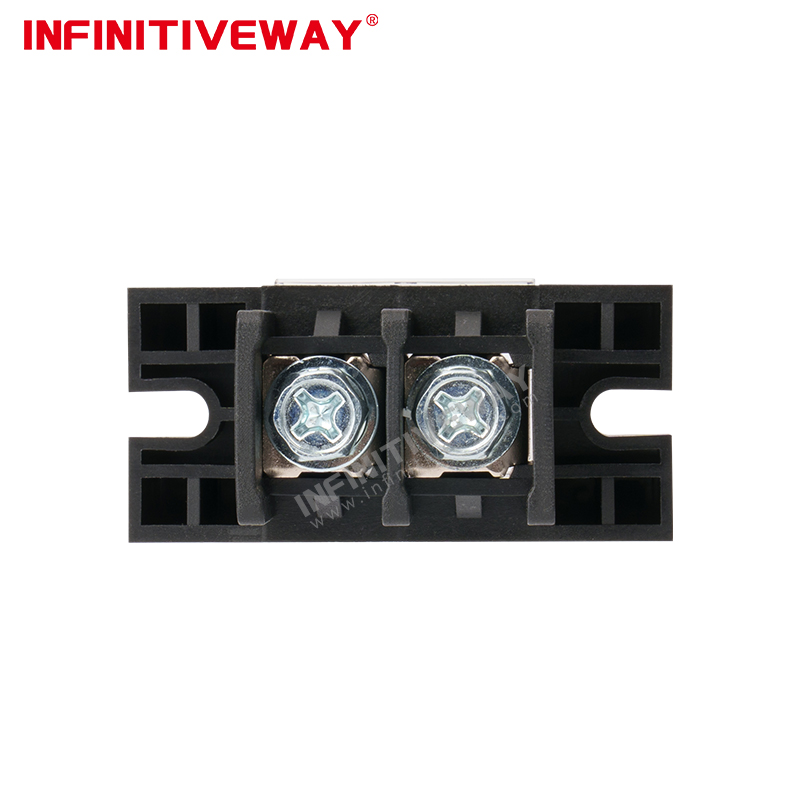

Bar type Terminal Block IF-6330-D-2-2-75A

Bar type Terminal Block IF-6330-D-2-2-75A
www.infinitiveway.com

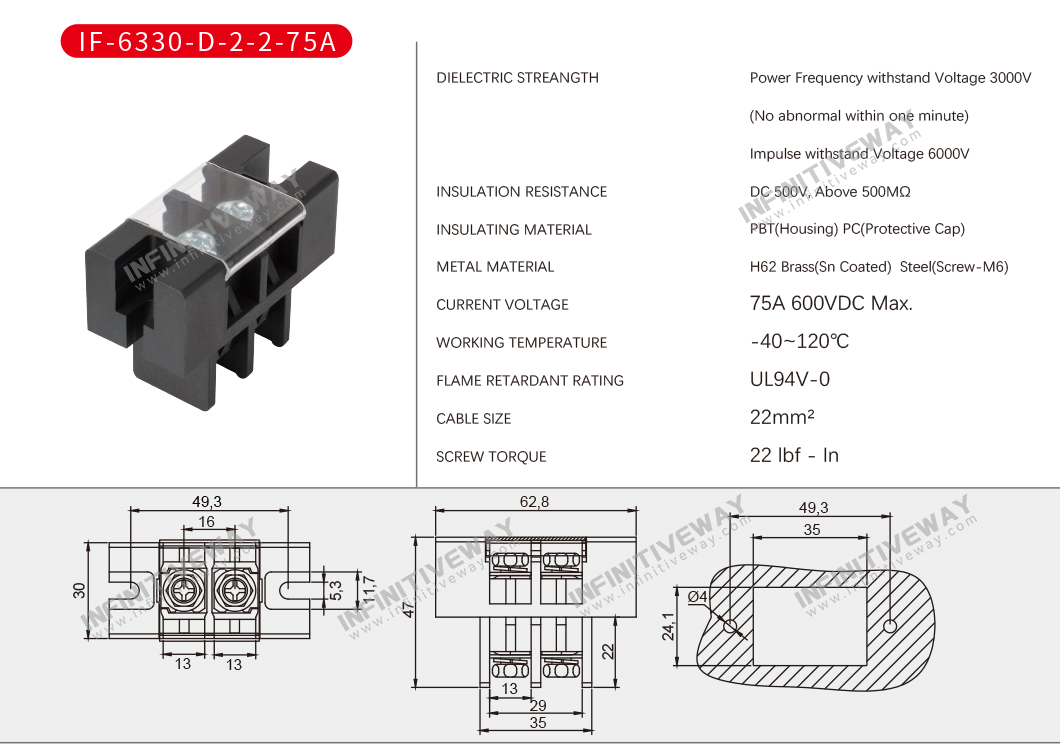

PRODUCT PARAMETERS:

Product   ModelIF-6330-D-2-2-75A
Dielectric   StreangthPower Frequency withstand   Voltage 3000V
    (No abnormal within one minute)
    Impulse withstand Voltage 6000V
Insulation   ResistanceDC 500V, Above 500MΩ
Insulating   MaterialPC
Metal   MaterialH62 Brass(Sn Coated)
Current   Voltage75A 600VDC Max.
Working   Temperature-40~120℃
Flame   Retardant RatingUL94V-0
Cable   Size22mm²
Screw   Torque22lbf - In
