STRETCHABLE BELT TYPE

IF-TTSJ-24-OS-266(AMS/PMS) IF-TTSJ-24-IS-266AMS

IF-TTSJ-24-OS-266(AMS/PMS) IF-TTSJ-24-IS-266AMS
www.infinitiveway.com

PRODUCT PARAMETERS:

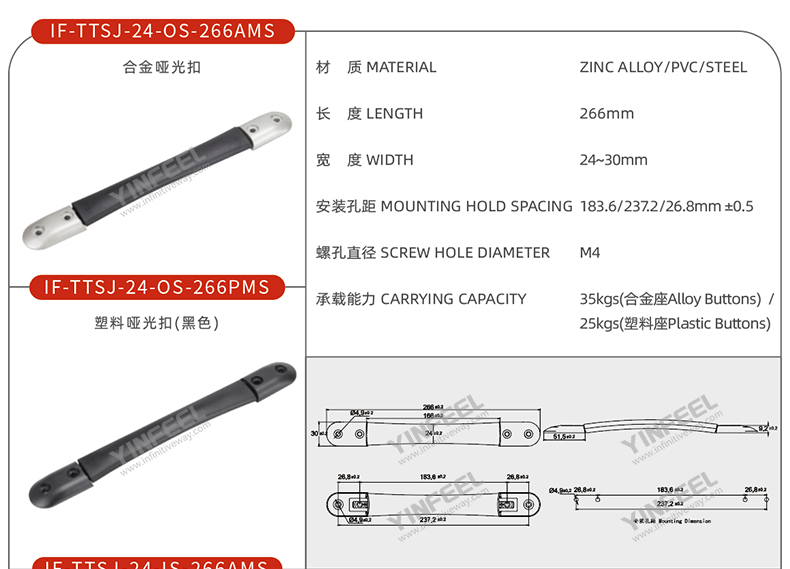

Product   ModelIF-TTSJ-24-OS-266AMS
Plastic   MaterialPVC(Handle)
Metal   MaterialZinc Alloy/Manganese   steel/Stainless steel
Screw   Hole DiameterM4
Mounting   Hole Distance183,6 / 237,2 / 26,8 ±0.2mm
Handle's   Width24~30mm
Handle's   Total LengthAssembled 266mm
Carrying   Capacity35kgs


Product   ModelIF-TTSJ-24-OS-266PMS
Plastic   MaterialPVC(Handle)
Metal   MaterialManganese steel/Stainless steel
Screw   Hole DiameterM4
Mounting   Hole Distance183,6 / 237,2 / 26,8 ±0.2mm
Handle's   Width24~30mm
Handle's   Total LengthAssembled 266mm
Carrying   Capacity35kgs

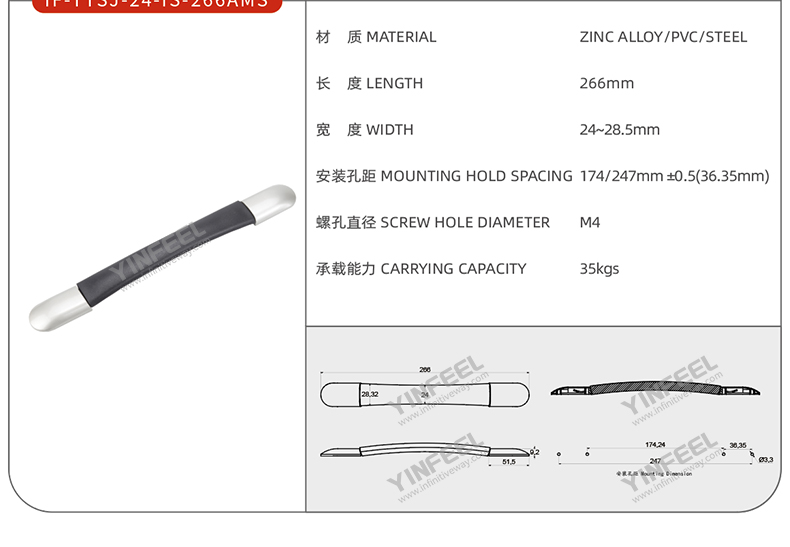

Product   ModelIF-TTSJ-24-IS-266AMS
Plastic   MaterialPVC(Handle)
Metal   MaterialZinc Alloy/Manganese   steel/Stainless steel
Screw   Hole DiameterM4
Mounting   Hole Distance174mm/247±0.2mm
Handle's   Width26mm
Handle's   Total LengthAssembled 266mm
Carrying   Capacity35kgs



Product Details


IF-TTSJ-24-OS-266(AMS/PMS) IF-TTSJ-24-IS-266AMS

IF-TTSJ-24-OS-266(AMS/PMS) IF-TTSJ-24-IS-266AMS
