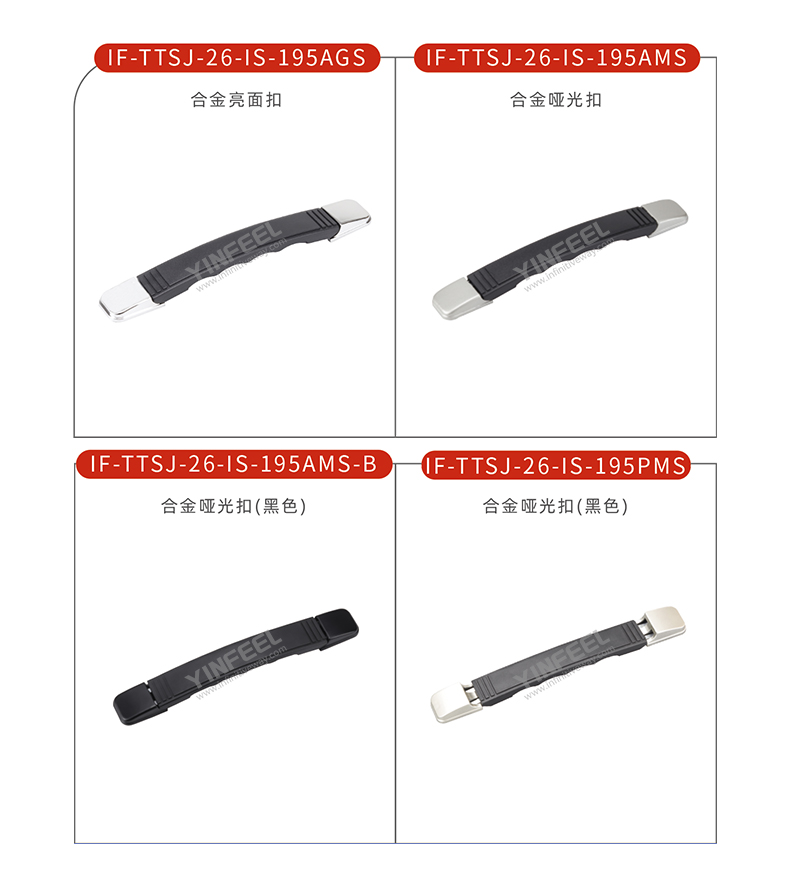

Product Model | IF-TTSJ-26-IS-195AGS/AMS/AMS-B |
Plastic Material | PVC(Handle) Alloy( Lock Catch) |
Metal Material | Steel Sheet/Zinc Alloy |
Screw Hole Diameter | M4 |

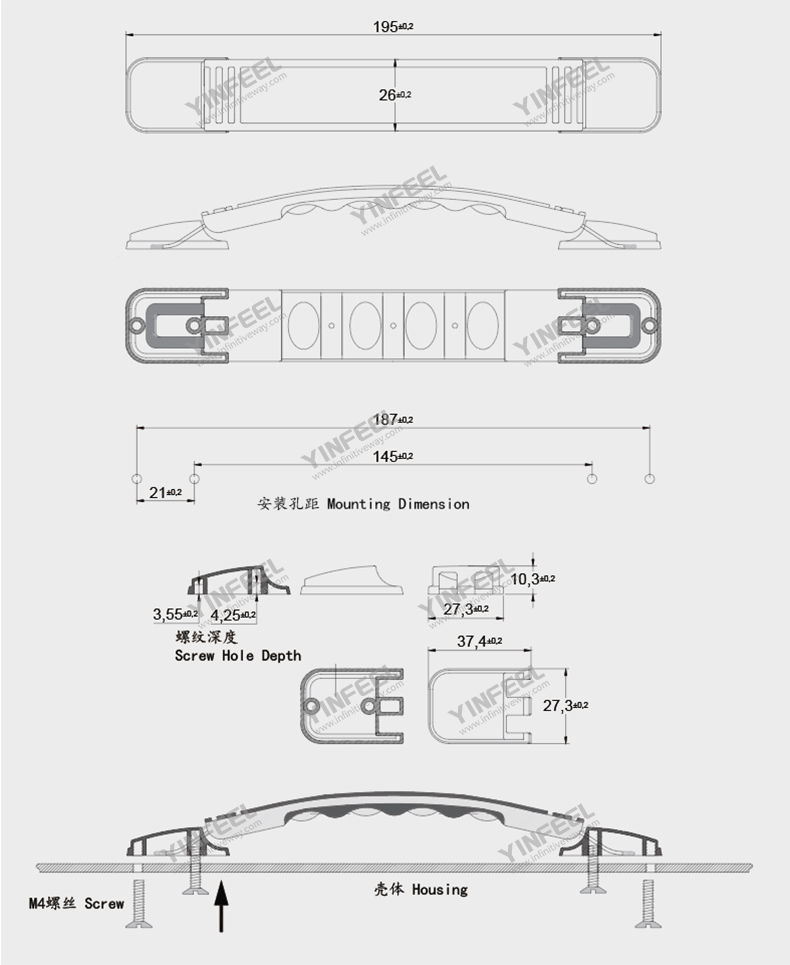

Mounting Hole Distance | 145mm/189 ±0.2mm |
Handle's Width | 26mm |
Handle's Total Length | Strip Portion 138mm Assembled 195mm |
Carrying Capacity | 35kgs |
|
|
Product Model | IF-TTSJ-26-IS-195PMS |
Plastic Material | PVC(Handle) ABC(Lock Catch) |
Metal Material | Steel Sheet/Stainless Steel |
Screw Hole Diameter | M4 |
Mounting Hole Distance | 145mm/189 ±0.2mm |
Handle's Width | 26mm |
Handle's Total Length | Strip Portion 138mm Assembled 195mm |
Carrying Capacity | 25kgs |
