Product Model | IF-TTX-21-162 |
Plastic Material | PVC |
Metal Material | Manganese Steel Sheet/Stainless Steel |
Screw Hole Diameter | 4mm±0.2mm |

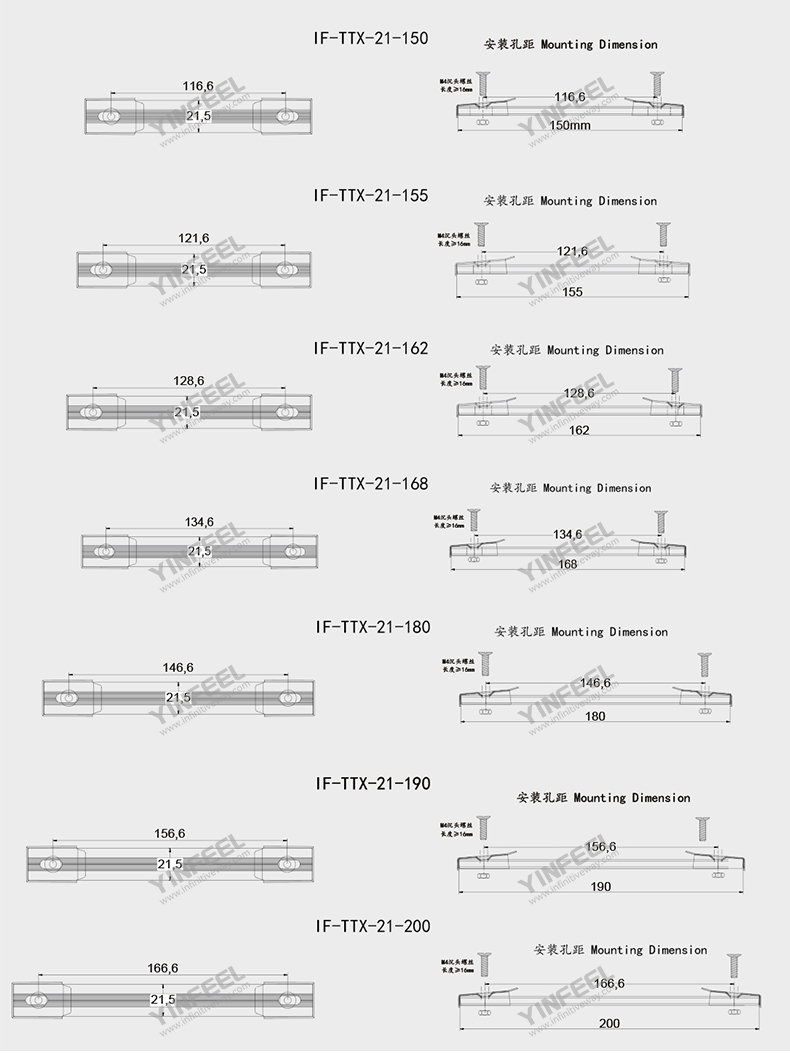

Mounting Hole Distance | 128.6mm±0.5mm |
Handle's Width | 21.5~22mm±0.5mm |
Handle's Total Length | 162mm |
Carrying Capacity | 60kgs(Carrying capacity is variable depending on screw size) |
|
|
Product Model | IF-TTX-21-180 |
Plastic Material | PVC |
Metal Material | Manganese Steel Sheet/Stainless Steel |
Screw Hole Diameter | 4mm±0.2mm |
Mounting Hole Distance | 146.6mm±0.5mm |
Handle's Width | 21.5~22mm±0.5mm |
Handle's Total Length | 180mm |
Carrying Capacity | 60kgs(Carrying capacity is variable depending on screw size) |
|
|
Product Model | IF-TTX-21-190 |
Plastic Material | PVC |
Metal Material | Manganese Steel Sheet/Stainless Steel |
Screw Hole Diameter | 4mm±0.2mm |
Mounting Hole Distance | 156.6mm±0.5mm |
Handle's Width | 21.5~22mm±0.5mm |
Handle's Total Length | 190mm |
Carrying Capacity | 60kgs(Carrying capacity is variable depending on screw size) |
|
|
Product Model | IF-TTX-21-200 |
Plastic Material | PVC |
Metal Material | Manganese Steel Sheet/Stainless Steel |
Screw Hole Diameter | 4mm±0.2mm |
Mounting Hole Distance | 166.6mm±0.5mm |
Handle's Width | 21.5~22mm±0.5mm |
Handle's Total Length | 200mm |
Carrying Capacity | 60kgs(Carrying capacity is variable depending on screw size) |
