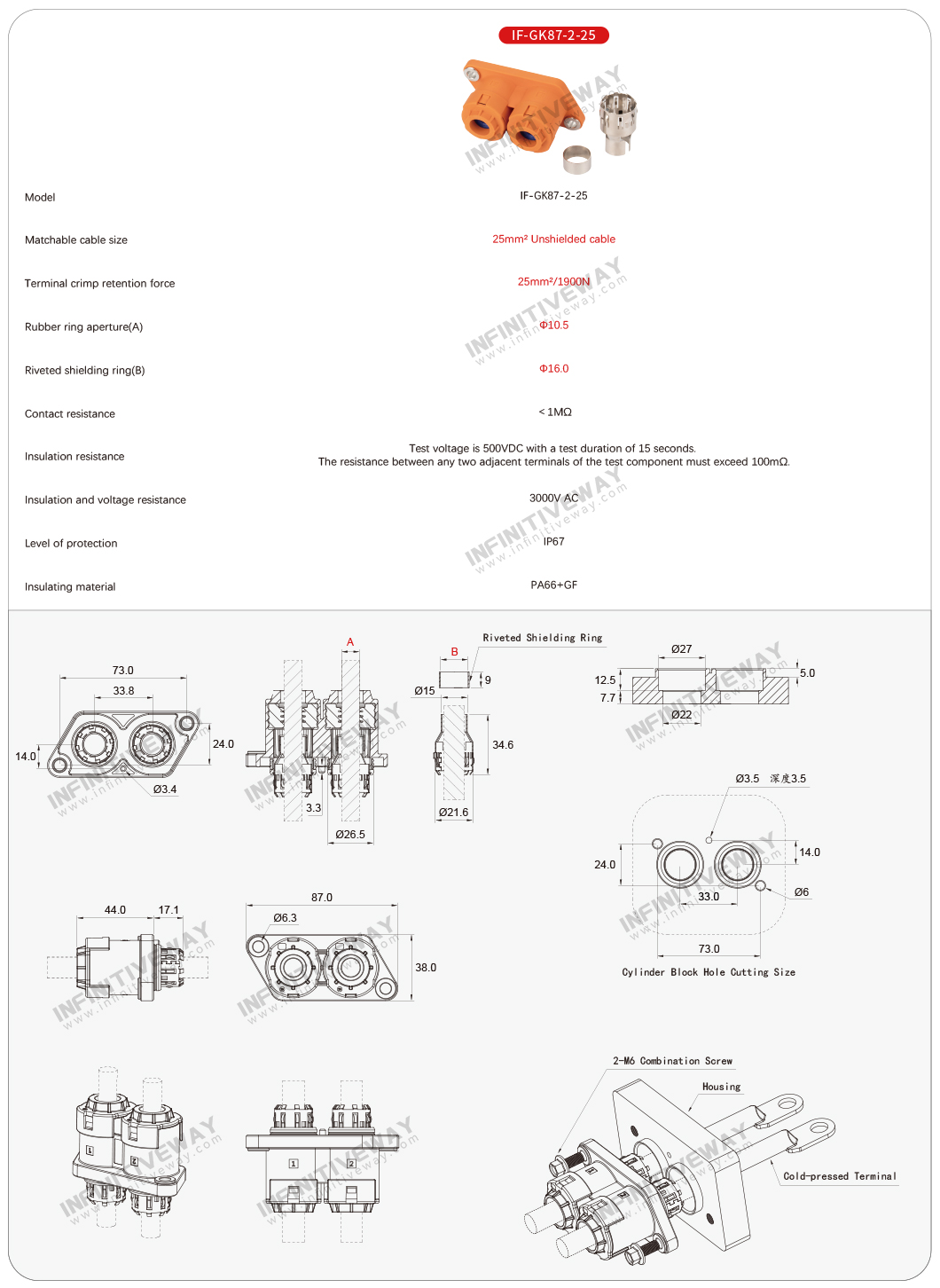

| Product model | IF-GK87-2-25 |
| Matchable cable size | 25 square millimeters |
Terminal crimp retention force
| 25mm²/1900N |
| Rubber ring aperture(A) | Φ10.5 |
| Riveted shielding ring(B) | Φ16.0 |
| Contact resistance | <1MΩ |
| Insulation and voltage resistance | 3000V AC |
| Level of protection | IP67 |
| Insulating material | PA66+GF
|
