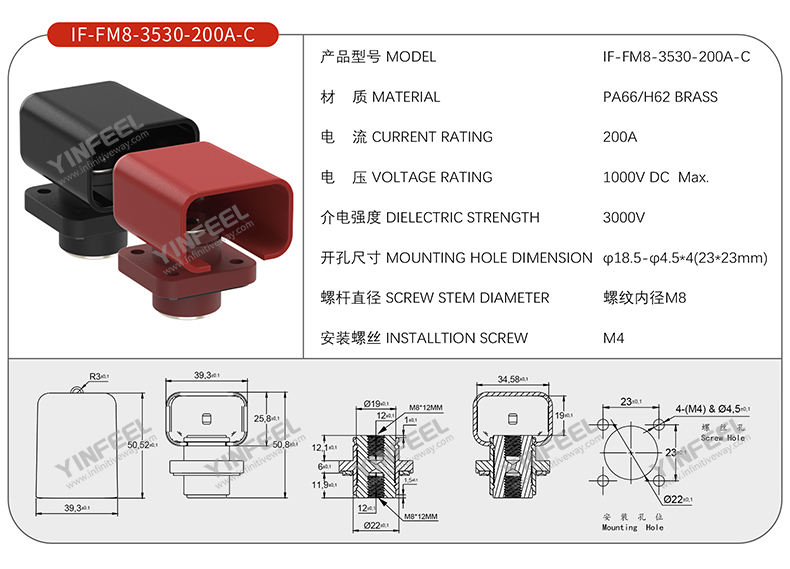

| Product Model | IF-FM8-3530-200A-C |
| Dielectric Streangth | ≥3000VAC/min |
| Insulation Resistance | 1000MΩ |
| Contact Resistance | 0.2mΩ Max |
| Insulating Material | PA66 Anti-Flaming Glass Fiber Reinforced |
| Metal Material | H62 Brass/Nickel Barrel Plating |
| Current & Voltage | 0~1000V DC Max. 200A |
| Screw Torque | 15~25nm |
| Level of Protection | IP67 When fastened
Sealing Gasket against Panel Portion |
| Temperature Rating | -40℃~+125℃ |
| Flammability | UL94V-0 (Sealing Gasket not included) |
| Environmental Level | RoHS Compliant |
