TERMINAL BOLT

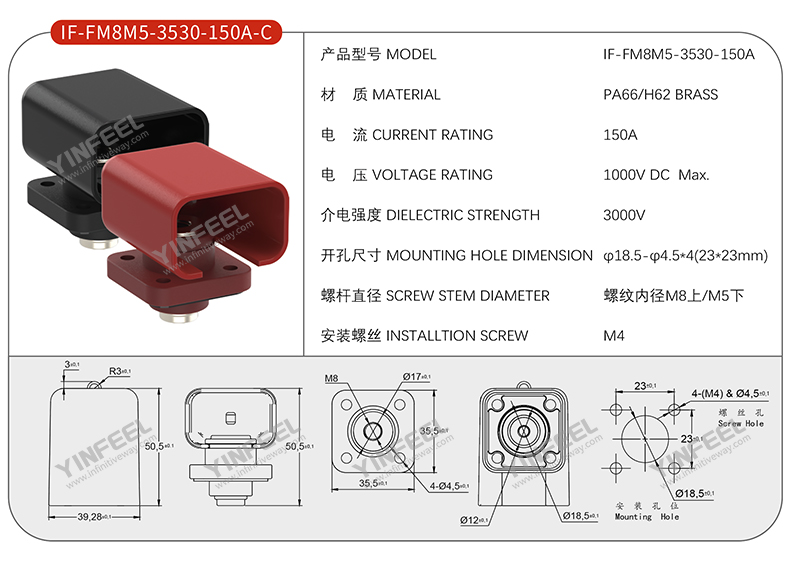

IF-FM8M5-3530-150A-C

IF-FM8M5-3530-150A-C
www.infinitiveway.com

PRODUCT PARAMETERS:

Product   ModelIF-FM8M5-3530-150A-C
Dielectric   Streangth≥3000VAC/min
Insulation   Resistance1000MΩ
Contact   Resistance0.2mΩ Max
Insulating   MaterialPA66 Anti-Flaming Glass Fiber   Reinforced
Metal   MaterialH62 Brass/Nickel Barrel Plating
Current   & Voltage0~1000V DC Max. 150A
Screw   Torque15~25nm
Level   of ProtectionIP67 When fastened
    Sealing Gasket against Panel Portion
Temperature   Rating-40℃~+125℃
FlammabilityUL94V-0 (Sealing Gasket not   included)
Environmental   LevelRoHS Compliant



Product Details


IF-FM8M5-3530-150A-C
