TERMINAL BOLT

IF-PC-0625-BSSH4.2-PS

IF-PC-0625-BSSH4.2-PS
www.infinitiveway.com

PRODUCT PARAMETERS:

Product   ModelIF-PC-0625-BSSH4.2-PS
Dielectric   Streangth≥3000VAC/min
Insulating   MaterialPA66 Anti-Flaming Glass Fiber   Reinforced
    Chloroperene Rubber (Sealing Gasket)
Metal   MaterialT2 Copper Silver Plated
Current   Voltage120A 1000VDC Max.
Contact   Resistance0.05MΩ Max.
Insulation   Resistance1000MΩ
Flame   Retardant GradeUL94-V0
Water   Proof GradeIP67
Working   Temperature-40~105℃
Temperature   Rise4hrs＜20℃
Matchable   Cable Size25mm²
Socket   Core DiameterΦ6
Product   Duribility＞2000 Cycles
Anti-Pulling   Off Force＞200N



Download as PDF

Product Details

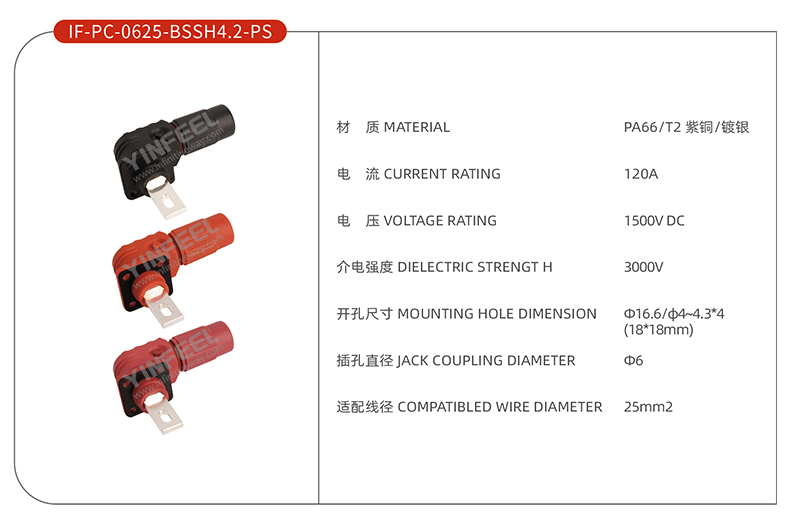

IF-PC-0625-BSSH4.2-PS

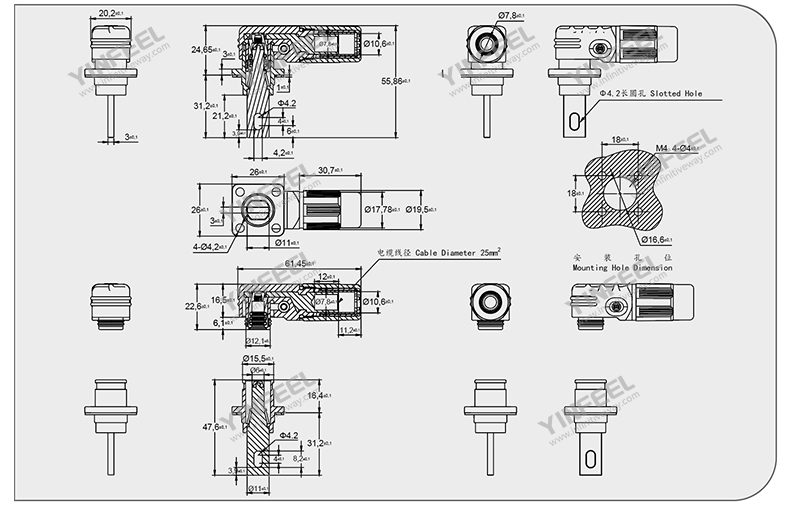

IF-PC-0625-BSSH4.2-PS
