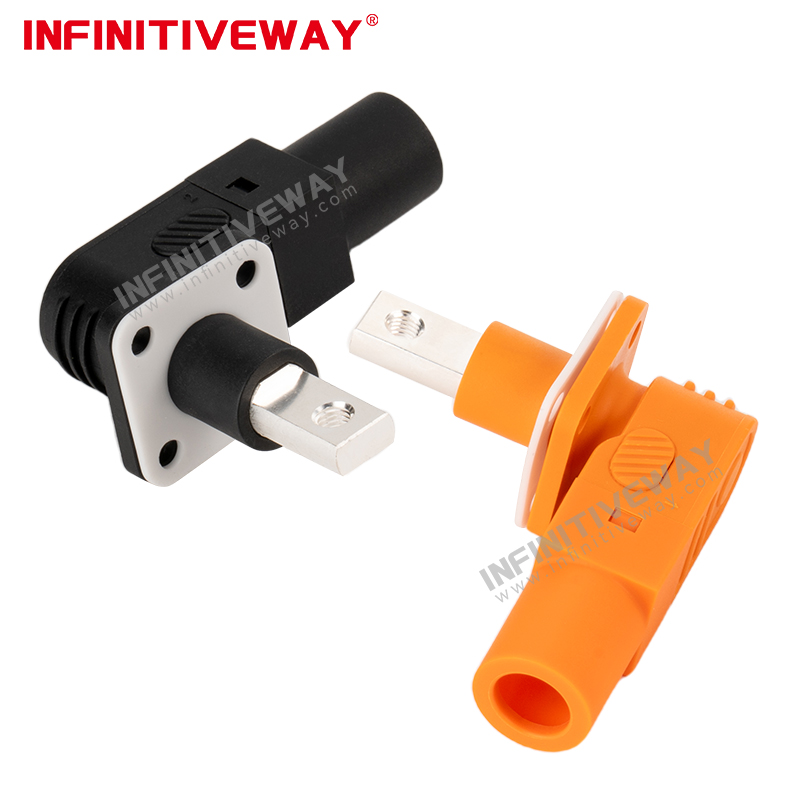

IF-PA-05725-BSM5-PS

www.infinitiveway.com

Product Model	IF-PA-05725-BSM5-PS
Dielectric Streangth	≥3000VAC/min
Insulating Material	PA66 Anti-Flaming Glass Fiber Reinforced Chloroperene Rubber (Sealing Gasket)
Metal Material	T2 Copper Silver Plated
Current & Voltage	120A 1000VDC Max.
Contact Resistance	0.05MΩ Max.
Insulation Resistance	1000MΩ
Flame Retardant Grade	UL94-V0
Water Proof Grade	IP67 (Closure State)
Working Temperature	-40~105℃
Temperature Rise	4hrs＜20℃
Matchable Cable Size	25mm²
Socket Core Diameter	Φ5.7
Product Duribility	＞2000 Cycles
Anti-Pulling Off Force	＞200N

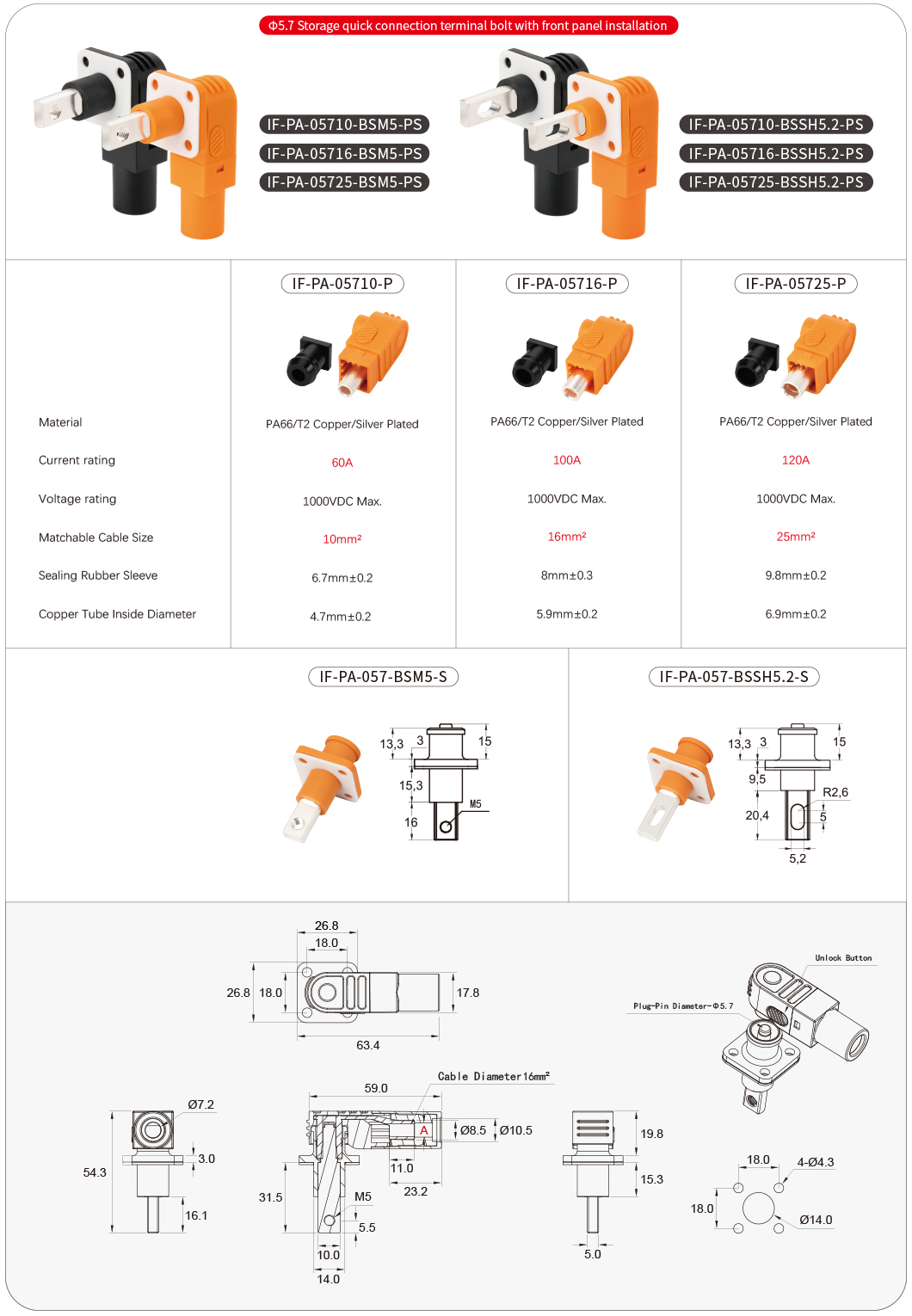

Product Details
