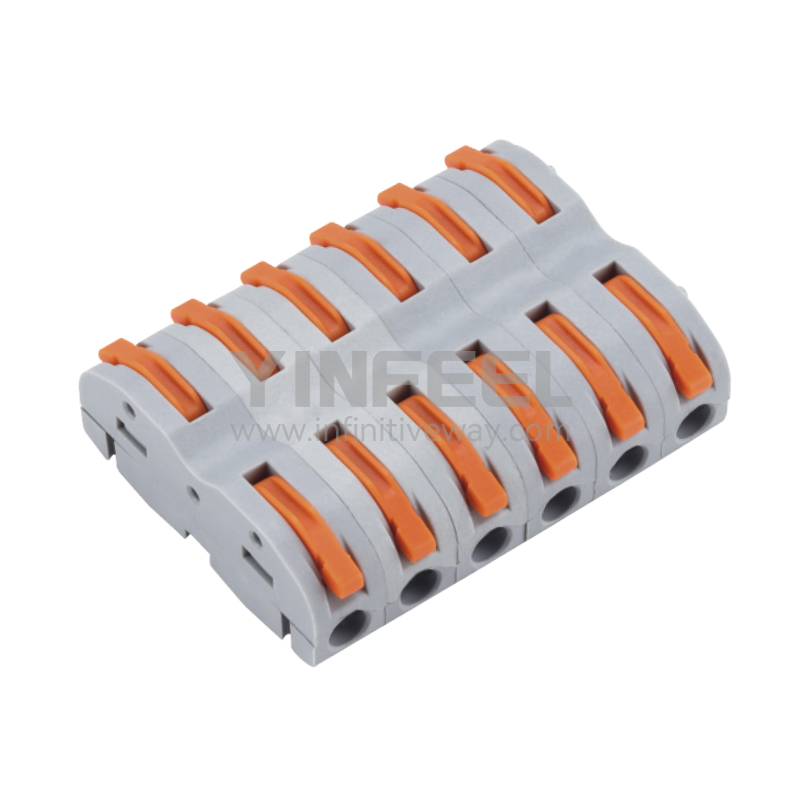

TERMINAL BOLT

IF-QTR-ASM-66

IF-QTR-ASM-66
www.infinitiveway.com

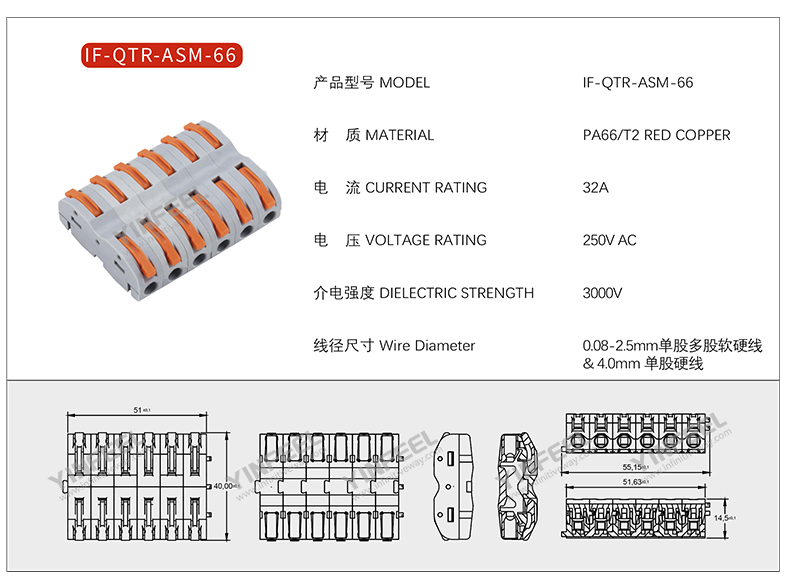

PRODUCT PARAMETERS:

Product   ModelIF-QTR-ASM-66
Electrical SpecificationDielectric Streangth≥4000VAC/min
Current   & Voltage0~400V 32A
Compatible   Cable Size0.08-2.5mm Single-Core &   Multi-Core,flexible wire & Hard wire
    4mm Single-Core hard wire
Mechanical   CapacityEnvironment Temperature-30~+85℃
Wire   Stripping Length9mm
Product MaterialMetal MaterialConductive Portion -- T2 Red   Copper Tin Plated
    Clips -- 301 Stainless Steel
Insulating   MaterialPA66 Anti Flaming Glass Fiber   Enhanced



Product Details


IF-QTR-ASM-66
