TERMINAL BOLT

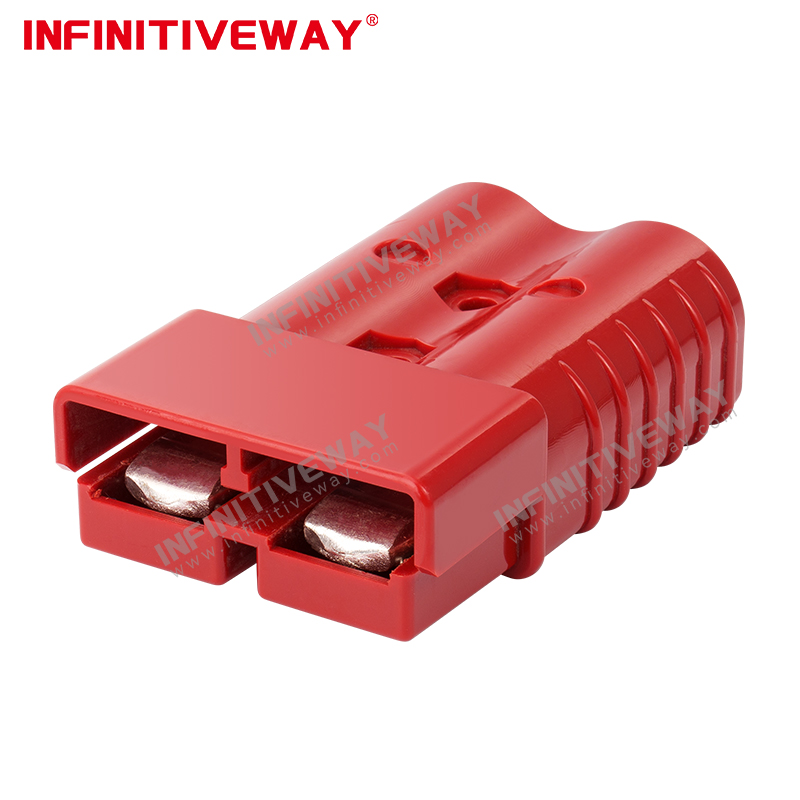

Insert and Extract type Terminal IF-ADS-350A Red

Insert and Extract type Terminal IF-ADS-350A Red
www.infinitiveway.com

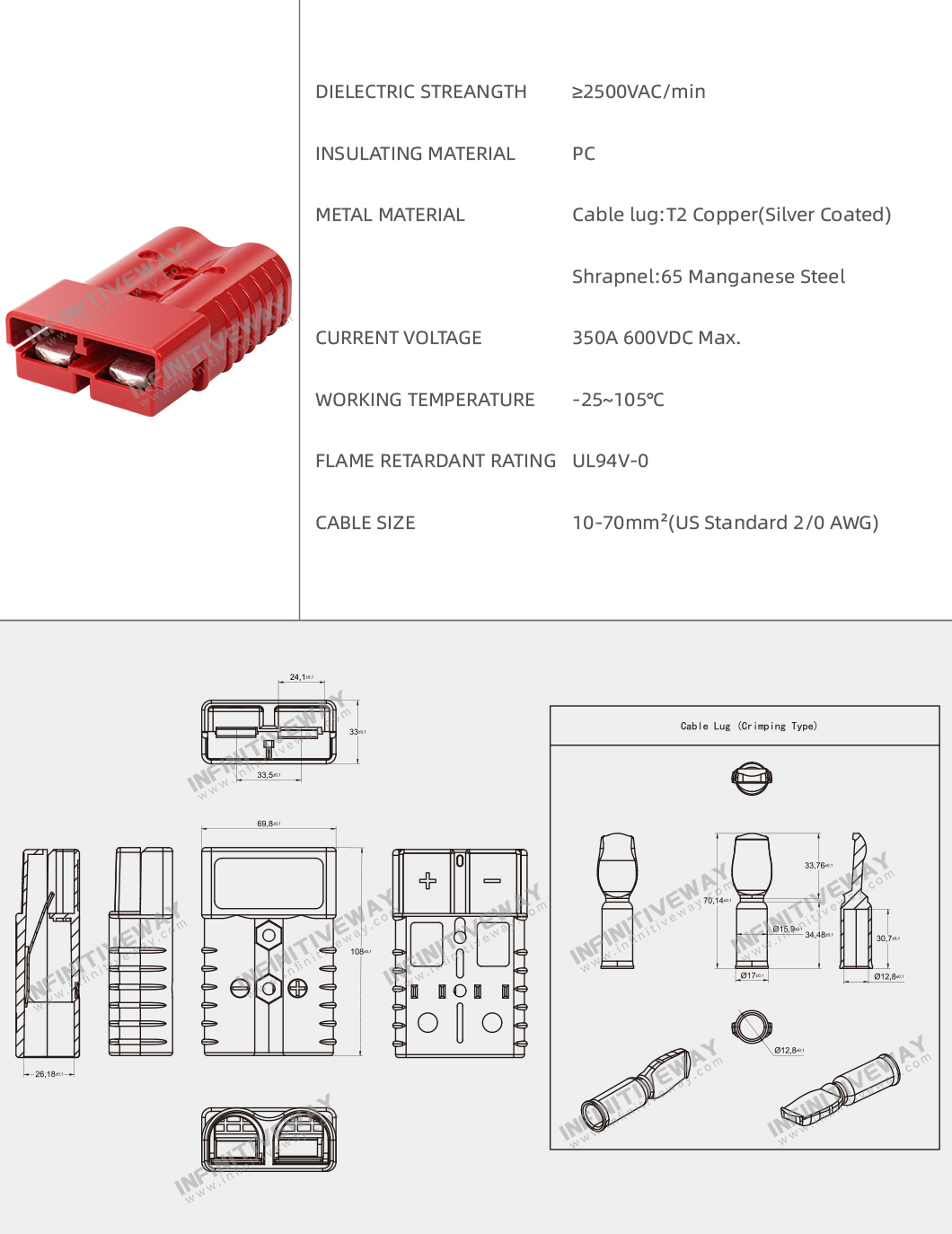

PRODUCT PARAMETERS:

Product   ModelIF-ADS-350A
Dielectric   Streangth≥2500VAC/min
Insulating   MaterialPC
Metal   MaterialCable lug: T2 Copper(Silver   Coated)
    Shrapnel : 65 Manganese Steel
Current   & Voltage350A 600VDC Max.
Working   Temperature-25~105℃
Flame   Retardant RatingUL94V-0
Cable   Size10-70mm2 (2/0 AWG)



Download as PDF

Product Details


Insert and Extract type Terminal IF-ADS-350A Red
