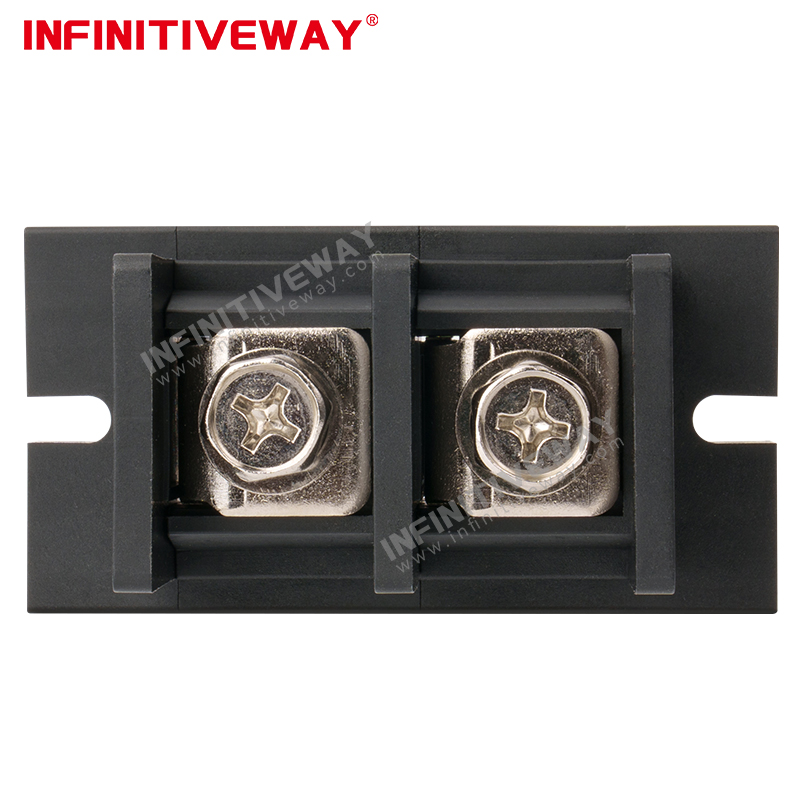

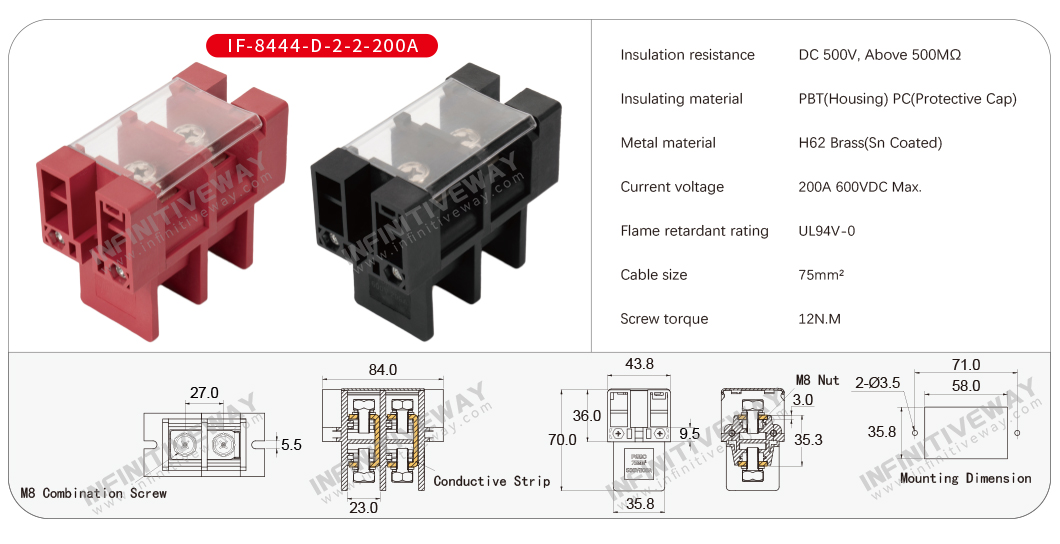

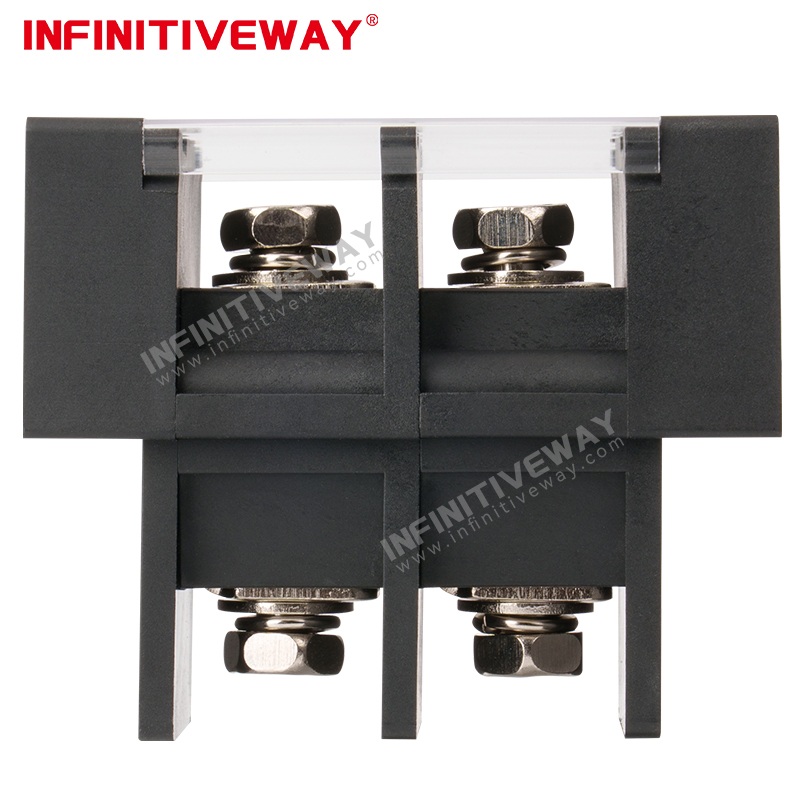

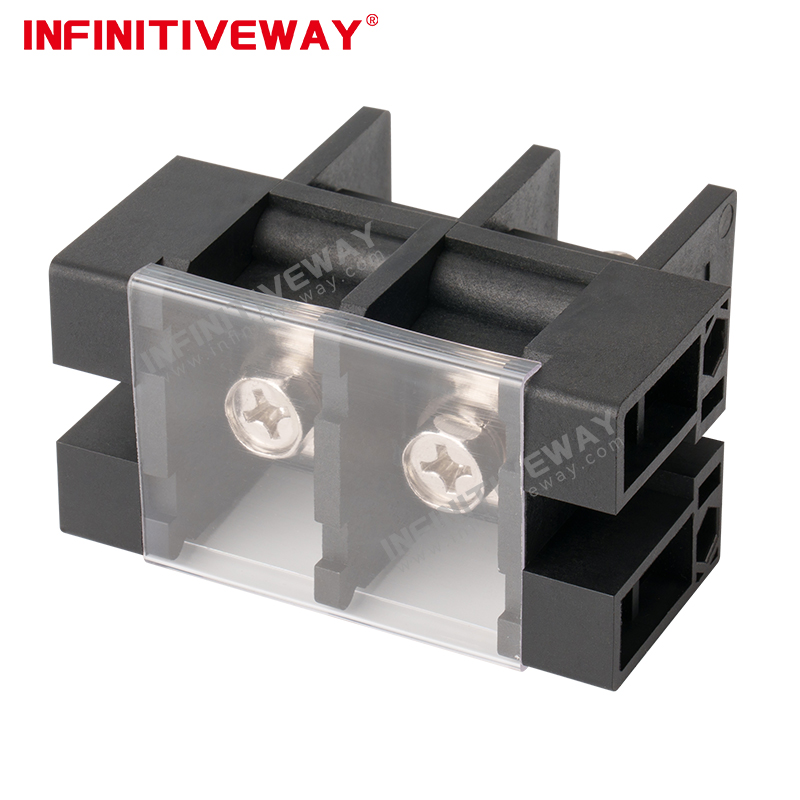

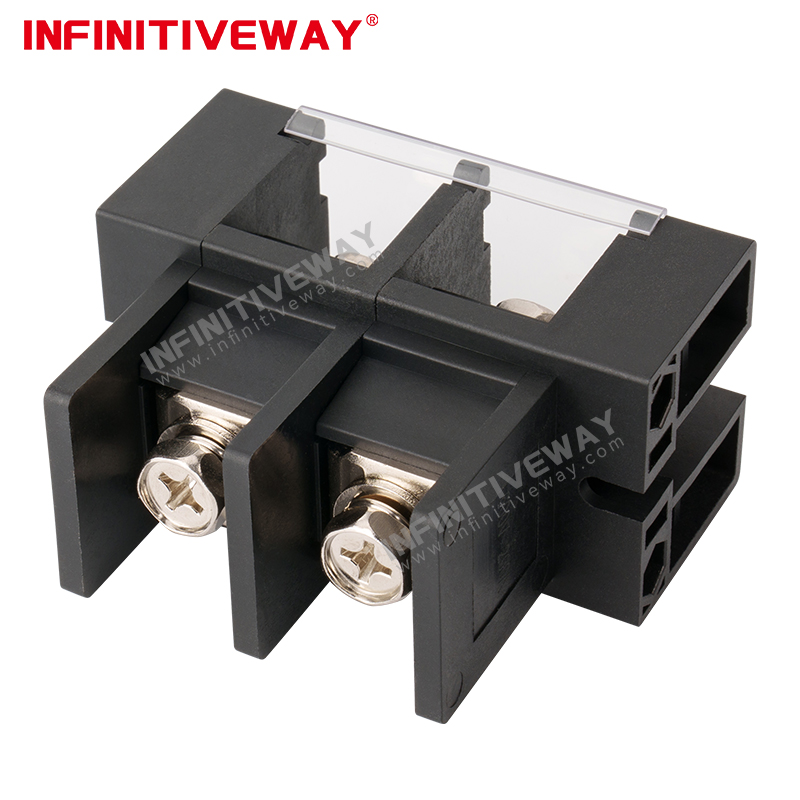

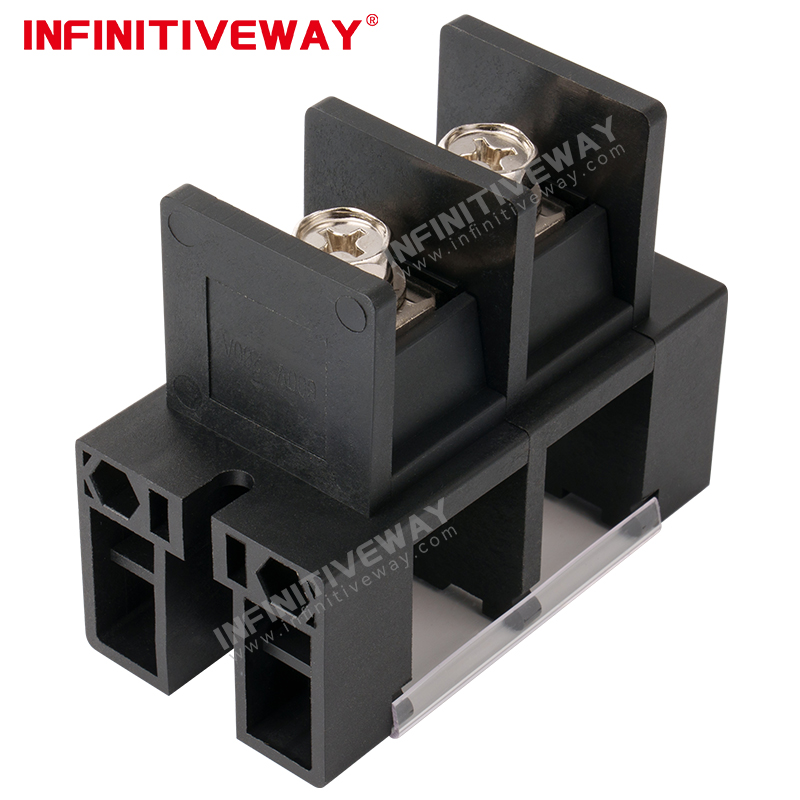

| Product Model | IF-8444-D-2-2-200A |
| Dielectric Streangth | Power Frequency withstand Voltage 3000V
(No abnormal within one minute)
Impulse withstand Voltage 6000V |
| Insulation Resistance | DC 500V, Above 500MΩ |
| Insulating Material | PBT(Housing) PC(Protective Cap) |
| Metal Material | H62 Brass(Sn Coated)
Steel (M8 Screw) |
| Current Voltage | 200A 600VDC Max. |
| Working Temperature | -40~120℃ |
| Flame Retardant Rating | UL94V-0 |
| Cable Size | 75mm² |
| Screw Torque | 60 lbf - In |
